Self-Drilling Screws: Technical Specifications and Selection Guide

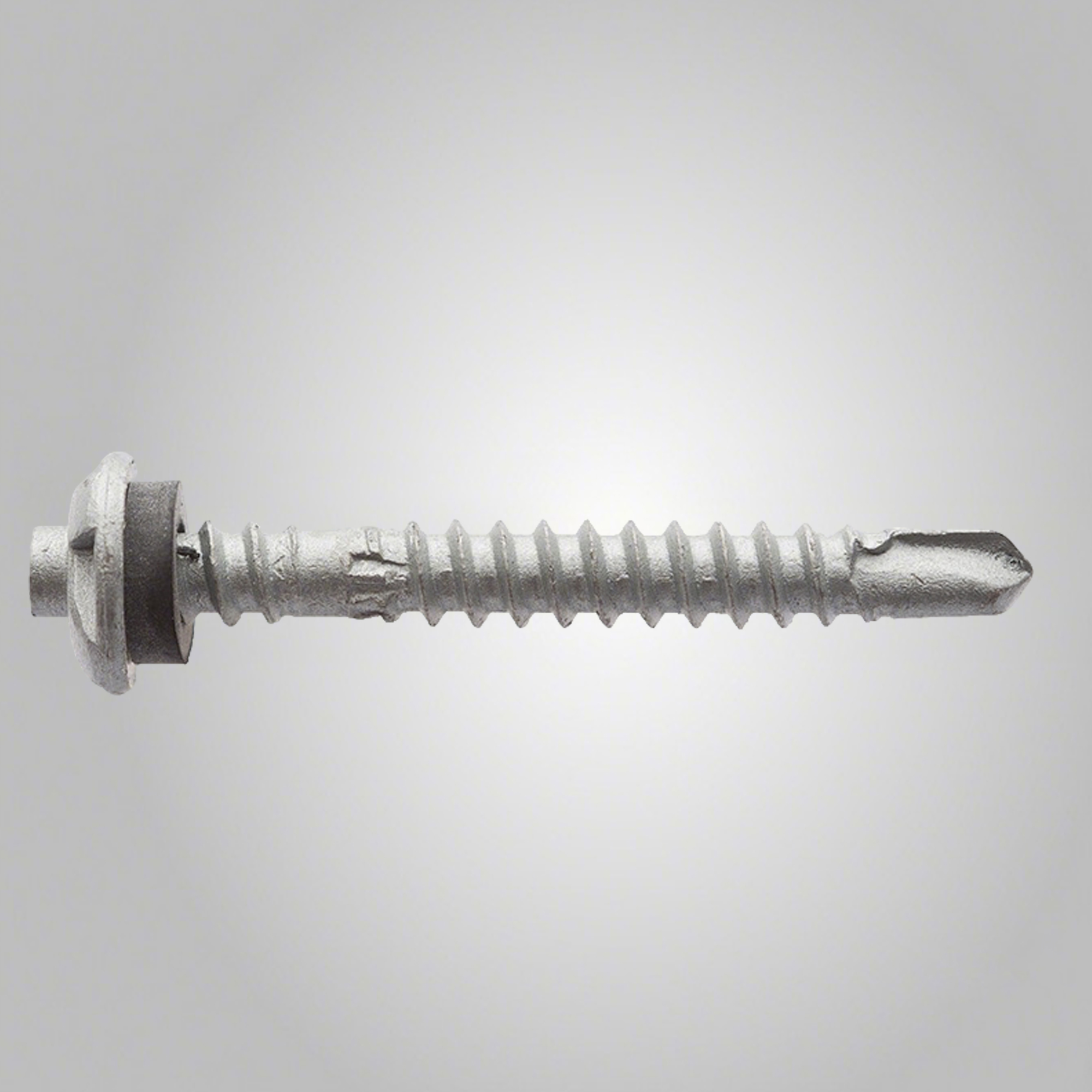

Self-drilling screws, commonly known as TEK screws, are specialized fasteners that integrate a drill point at the tip, followed by self-tapping threads. This design allows them to drill their own pilot hole and form mating threads in a single operation, significantly streamlining the fastening process in metal fabrication, construction, and HVAC installations.
Key Technical Features & Selection Criteria:
Core Function: The integrated drill point eliminates the need for a separate pre-drilling step in the base material (e.g., steel). However, the top material being fastened must have a pre-drilled clearance hole to allow the screw shank to pass through freely, ensuring a tight clamp and a strong joint.
vs. Self-Tapping Screws: The primary distinction is that self-tapping screws require a pre-drilled pilot hole, whereas self-drilling screws perform the drilling and tapping functions concurrently.
Winged Variants (Wingteks): These screws feature wings between the drill point and threads. The wings pre-clear a wider path in the top material, allowing the threads to pass through without engagement, reducing driving torque and preventing binding when fastening thicker materials like timber to metal.
Drilling Capacity: Capacity depends on the screw's point length and flute design. The drill point must fully penetrate the material before the threads engage to prevent binding and breakage. Selecting the correct point size (e.g., #5 point for up to ~12mm steel) is critical for the material thickness.
Optimal Performance & Troubleshooting:
Like any cutting tool, performance depends on cutting speed, feed rate, and material. Using the correct driver setting and ensuring the screw specification matches the combined material thickness are paramount. Common installation issues, such as screw breakage or incomplete penetration, are typically resolved by:
Verifying the drill point is rated for the total material thickness.
Ensuring a proper clearance hole in the top layer.
Using winged screws for composite material stacks.
Applying appropriate, consistent drive speed without over-tightening.
For professional applications, selecting the correct self-drilling screw specification is essential for joint integrity and installation efficiency. Tianyu provides a range of screws designed to meet diverse industrial requirements and material challenges.
